In new energy vehicles (NEVs), electric motors and electronic control units (ECUs, including inverters and motor controllers) operate under demanding conditions involving rapid temperature swings, road splash, vibration, and high humidity. These factors create internal condensation, pressure differentials that risk housing deformation or bursting, and accelerated corrosion of sensitive components. ePTFE (expanded polytetrafluoroethylene) waterproof breathable vents provide a proven technical solution that maintains IP67/IP68/IP69K-level protection while enabling pressure equalization and moisture vapor transmission.
Environmental Challenges in Sealed Motor and ECU Enclosures
Sealed motor housings and ECU enclosures protect against dust, water, and contaminants but trap internal air. During high-load operation or fast charging, components generate significant heat. When the vehicle cools or operates in cold, wet environments, rapid temperature drops occur. Without managed venting, these cycles lead to condensation, pressure buildup, and long-term material degradation.

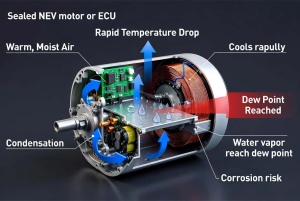

How Condensation Forms and Impacts Reliability
Condensation occurs when warm, moist air inside the enclosure reaches its dew point upon cooling, forming liquid droplets on circuit boards, connectors, windings, and metal surfaces. In motors and ECUs, this moisture causes electrical shorts, insulation breakdown, and electrochemical corrosion—directly reducing efficiency, increasing failure rates, and shortening component lifespan in safety-critical powertrain systems.
Pressure Differentials and the Risk of Bursting or Seal Failure
Temperature-driven expansion creates positive internal pressure, while cooling produces negative pressure (vacuum). Repeated stress can deform gaskets, crack housings, or cause seal failure and even structural bursting. In NEV applications, such failures compromise waterproofing and can lead to costly downtime or safety issues.
ePTFE Technology: Enabling Pressure Balance and Moisture Management
ePTFE membranes feature a microporous structure with billions of sub-micron pores. These pores allow gas molecules and water vapor to pass freely for real-time pressure equalization and humidity control, yet their hydrophobic nature combined with high water entry pressure repels liquid water, oils, and particulates. Integrated into robust vent assemblies, ePTFE solutions deliver continuous “breathing” without sacrificing enclosure integrity.
Preventing Corrosion Through Superior Breathable Performance
By facilitating ongoing vapor transmission and pressure equalization, ePTFE vents keep internal relative humidity low and eliminate standing water. This proactive moisture management dramatically reduces corrosion on copper traces, aluminum housings, and electronic components—extending service life and minimizing warranty claims for NEV manufacturers.
Implementation Considerations for Motor and ECU Applications
Engineers should evaluate airflow rate, temperature range (-40°C to +150°C typical), chemical resistance to automotive fluids and electrolytes, vibration durability, and compliance with automotive standards when selecting vents. Optimal placement on lower or side surfaces of the enclosure maximizes performance while maintaining overall IP ratings.
With more than ten years of specialized experience in ePTFE membranes and high-performance protective breathable products since 2016, Spider(Xiamen) Technology Co., Ltd has developed targeted solutions for new energy vehicle motors and electronic controls. Our professional R&D team—composed of masters and doctoral researchers—invests 5%-20% of annual revenue in innovation to push material performance limits.
Guided by the principle “Integrity builds quality, innovation leads the future,” we maintain ISO9001 and IATF16949 certifications and supply comprehensive test reports including SGS, CE, UL, RoHS, REACH, and PFOA-Free validation. Our products have supported over 1000 enterprises worldwide, with exports to Europe, the United States, Germany, Korea, Japan, and beyond.
For customized ePTFE waterproof breathable vent solutions tailored to your NEV motor or ECU requirements, contact our engineering team at weitaiyan@spider-amoy.com.
By SST R&D Engineering Team, Spider(Xiamen) Technology Co., Ltd.
