Thermal runaway remains one of the most critical safety challenges in lithium-ion battery packs for new energy vehicles. When a single cell enters thermal runaway, it can rapidly generate extreme heat and large volumes of gas, causing dangerous pressure spikes inside the sealed battery enclosure. Effective pressure management is essential to prevent enclosure rupture, reduce the risk of fire propagation, and enhance overall vehicle safety. ePTFE breathable valves, also referred to as ePTFE explosion-proof valves or safety vents, provide a reliable dual-function solution: maintaining pressure balance during normal operation while enabling rapid pressure relief during thermal events.
Understanding Thermal Runaway in EV Battery Packs
Thermal runaway occurs when a lithium-ion cell’s internal temperature rises uncontrollably due to mechanical damage, overcharging, manufacturing defects, or external heat. This triggers exothermic chemical reactions that release flammable gases (such as CO₂, H₂, CO, and hydrocarbons) and generate temperatures exceeding 600–800 °C. The rapid gas generation can increase internal pressure dramatically within seconds, potentially leading to cell venting, pack deformation, or catastrophic enclosure failure if not properly managed.
The Importance of Pressure Balance in Battery Enclosures
Battery packs are typically designed as sealed systems to achieve high IP67 or IP68 protection against water and dust. However, normal operating conditions — including ambient temperature fluctuations, charge/discharge cycles, and altitude changes — naturally create pressure differentials. Without effective venting, these differentials stress seals and housings. During a thermal runaway event, the pressure increase becomes extreme and sudden. A well-designed venting solution must handle both gradual pressure changes and emergency high-flow gas release while preserving the pack’s ingress protection rating.
How ePTFE Breathable Valves Work in Thermal Runaway Scenarios
ePTFE (expanded polytetrafluoroethylene) microporous membranes feature a unique node-and-fibril structure with precisely controlled pore sizes. In normal conditions, these membranes enable continuous bidirectional air and vapor flow for pressure equalization while their hydrophobic nature effectively blocks liquid water and dust, supporting IP67, IP68, and even IP69K ratings.
For thermal runaway protection, many advanced ePTFE valve designs incorporate dual-stage functionality:
- Passive Stage: The ePTFE membrane provides constant low-pressure breathing and moisture management.
- Active / Emergency Stage: When internal pressure exceeds a predefined threshold, a mechanical component or the membrane itself activates to allow high-volume gas venting, rapidly relieving pressure and reducing the risk of pack rupture.
This combination ensures the battery pack remains protected under everyday conditions but can respond instantly to emergency overpressure events.
Key Advantages of ePTFE Valves for Battery Safety
- Excellent chemical resistance to aggressive battery electrolytes and vent gases
- Wide operating temperature range, maintaining performance from extreme cold to high heat
- High air flow rates when needed while offering reliable waterproofing
- Long-term durability and stability (typically 10+ years service life)
- Lightweight and compact design suitable for space-constrained battery packs
These characteristics make ePTFE the preferred material for high-safety new energy vehicle battery applications.
Real-World Application and Performance

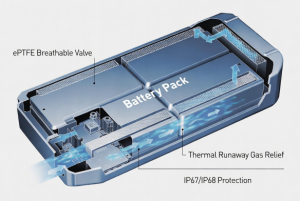

In modern electric vehicles, ePTFE breathable valves are strategically placed on battery enclosures to optimize safety. They help meet stringent regulatory requirements for thermal propagation prevention while supporting efficient thermal management and condensation control. Proper valve selection and placement can significantly improve pack integrity during both normal cycling and rare but severe thermal events.
Since 2016, Spider(Xiamen) Technology Co., Ltd has specialized in ePTFE membranes and high-performance protective breathable products, accumulating more than 10 years of deep expertise in this field. Our professional R&D team of master’s and doctoral polymer material specialists invests 5 %–20 % of annual revenue into continuous innovation. We maintain ISO9001 and IATF16949 certifications and provide full third-party validation including SGS, CE, UL, RoHS, REACH, and PFOA-Free reports. Our solutions are trusted by over 1,000 enterprises across Europe, the United States, Germany, Korea, Japan, India, Russia, Turkey, and beyond. This reflects our core principle: integrity builds quality, innovation leads the future.
For technical consultation, customized ePTFE breathable valve solutions for battery packs, or detailed performance data, please contact us at weitaiyan@spider-amoy.com.
By SST R&D Engineering Team, Spider(Xiamen) Technology Co., Ltd.
