Selecting the right IP68-rated breathable valve is critical for electric vehicle (EV) battery pack safety and reliability. These valves must deliver continuous pressure equalization while maintaining full waterproof and dustproof performance under harsh automotive conditions. This practical guide outlines the essential parameters and testing standards engineers need to evaluate when specifying ePTFE waterproof breathable membranes for next-generation battery enclosures.
Why IP68-Rated Breathable Valves Matter in EV Battery Packs
Modern lithium-ion battery packs operate as sealed systems to achieve high ingress protection against water, dust, road spray, and high-pressure washing. However, normal temperature fluctuations, charge/discharge cycles, altitude changes, and potential thermal events create internal pressure differentials. Without effective venting, these differentials can stress seals, cause deformation, or lead to premature failure — directly compromising the IP68 rating and vehicle safety.
Core Technical Parameters for IP68 Waterproof Breathable Membranes
When evaluating breathable valves, focus on these key performance parameters. Each directly impacts real-world reliability in automotive applications.
| Parameter | Typical Requirement for EV Battery Packs | Why It Matters |
|---|---|---|
| Water Entry Pressure (WEP) | ≥ 0.5–1.0 bar (50–100 kPa) or higher | Determines resistance to water penetration under pressure |
| Air Flow Rate | 50–300 ml/min/cm² @ 12 mbar (application-specific) | Ensures rapid pressure equalization |
| Pore Size | 0.1–0.5 μm with uniform distribution | Balances waterproofing and breathability |
| Oleophobicity | High (electrolyte and oil repellent) | Prevents clogging from battery vent gases |
| Temperature Range | -40 °C to +150 °C (continuous) | Withstands automotive thermal cycling |
| Chemical Resistance | Excellent to acids, electrolytes, and vent gases | Long-term stability in battery environment |
| Mechanical Durability | High burst pressure and vibration resistance | Maintains performance under road shock and aging |

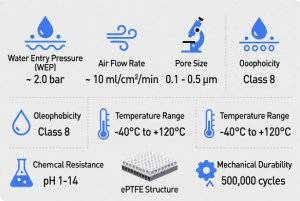

Reliable IP68 performance requires verification through internationally recognized standards:
- IEC 60529: Defines IP68 testing — complete dust tightness plus continuous water immersion (depth and duration specified by manufacturer, typically >1 m for 30+ minutes or more).
- Water Entry Pressure (WEP) Test: Quantifies the minimum pressure at which water penetrates the membrane.
- Air Permeability Test (ASTM D737 or equivalent): Measures airflow under controlled differential pressure.
- Thermal Cycling & Environmental Aging: Simulates years of temperature and humidity extremes.
- Chemical Compatibility & Salt Spray Testing: Validates resistance to battery electrolytes and corrosive environments.
- Automotive-Specific Standards: IATF 16949 quality management and ISO 20653 for road vehicle protection levels.
Third-party reports from SGS, UL, CE, RoHS, REACH, and PFOA-Free testing provide full traceability and confidence in long-term performance.
Practical Selection Checklist for Engineers
- Match air flow rate to your pack volume and expected pressure change rates.
- Verify WEP exceeds maximum external water pressure in your application.
- Confirm chemical compatibility with specific battery chemistry and vent gases.
- Request long-term durability data under combined thermal, vibration, and immersion conditions.
- Ensure the valve design supports easy integration (welding, adhesive, or mechanical mounting).
- Prioritize suppliers with proven automotive field performance and full IATF 16949 certification.
Why ePTFE Remains the Preferred Material
Expanded polytetrafluoroethylene (ePTFE) microporous membranes deliver the optimal combination of high WEP, excellent airflow, superior oleophobicity, and chemical inertness — performance levels that alternative materials struggle to match without trade-offs in IP68 reliability or service life.
Since 2016, Spider(Xiamen) Technology Co., Ltd has specialized exclusively in ePTFE membranes and high-performance protective breathable products, accumulating more than 10 years of focused expertise. Our professional R&D team of master’s- and doctoral-level polymer specialists invests 5 %–20 % of annual revenue into continuous innovation. We operate under ISO9001 and IATF16949-certified quality systems and provide comprehensive third-party validation reports.
Our solutions are already trusted by over 1,000 enterprises across Europe, the United States, Germany, Korea, Japan, India, Russia, Turkey, and beyond. This reflects our core belief: integrity builds quality, innovation leads the future.
For technical consultation, custom IP68 breathable valve solutions, or detailed test data tailored to your EV battery pack design, please contact us at weitaiyan@spider-amoy.com.
By SST R&D Engineering Team, Spider(Xiamen) Technology Co., Ltd.
