Engineers designing enclosures for electronics, automotive systems, new energy storage, and outdoor equipment routinely encounter the same critical requirement: reliable protection against water, dust, and high-pressure cleaning while preventing internal pressure differentials that can compromise seals or damage components. IP67, IP68, and IP69K ratings define these protection levels under international standards. ePTFE breathable valves—also known as microporous vents—enable enclosures to achieve and maintain these high IP ratings in the most demanding real-world conditions by combining impermeability to liquids and solids with controlled air and vapor transmission.
What IP67, IP68, and IP69K Actually Mean
The IP (Ingress Protection) code is defined by IEC 60529 and, for IP69K, additionally by ISO 20653. Each digit represents a specific level of protection:
- IP67: Complete dust tightness (no ingress of dust) and protection against temporary immersion in water up to 1 meter depth for 30 minutes.
- IP68: Complete dust tightness with continuous immersion in water beyond 1 meter, with exact depth and duration specified by the manufacturer.
- IP69K: Complete dust tightness plus resistance to high-pressure (80–100 bar) and high-temperature (80 °C) water jets from multiple angles, simulating powerful industrial cleaning processes.
These ratings are not theoretical; they are verified through standardized laboratory testing. However, achieving them in practice becomes far more challenging when enclosures experience temperature cycling, altitude changes, or internal heat generation—conditions that create pressure differentials.
The Hidden Pressure Problem in Sealed Enclosures
In a fully sealed enclosure without venting, even modest temperature rises (common in automotive sensors, battery packs, or outdoor electronics) cause internal air to expand, building positive pressure. Conversely, cooling or altitude increases create negative pressure (vacuum). Over time these repeated pressure cycles stress gaskets, deform housings, or force micro-paths for water and dust ingress—directly undermining the IP rating the enclosure was designed to meet. Traditional non-breathable seals often fail prematurely in harsh environments precisely because of this unaddressed pressure issue.
How ePTFE Breathable Valves Solve the Conflict
ePTFE microporous membranes feature a precisely controlled node-and-fibril structure with pore sizes typically between 0.1 and 0.5 micrometers. This structure is inherently hydrophobic and oleophobic, blocking liquid water droplets (typically >20 μm) and fine dust particles while allowing air molecules and water vapor (<0.0004 μm) to pass freely.
When integrated as a breathable valve, the membrane rapidly equalizes internal and external pressure without creating an entry path for contaminants. This pressure relief preserves the integrity of the main housing seals, allowing the enclosure to consistently pass and maintain IP67, IP68, or IP69K performance throughout its service life—even under repeated thermal cycling, high-pressure washdowns, or extreme weather exposure.
Proven Performance Across Harsh Environments

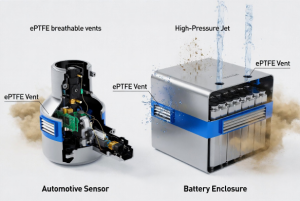

In automotive under-hood sensors and ECUs, ePTFE vents handle road spray, mud, and temperature swings from -40 °C to +125 °C while retaining IP68/IP69K compliance. New energy battery enclosures use these valves to manage pressure during rapid charge-discharge cycles and exposure to rain, snow, or dust storms. Outdoor telecommunications cabinets and medical equipment housings benefit from the same technology, resisting high-pressure cleaning in hospitals or industrial settings without internal condensation or seal breach.
Field data and third-party validation consistently show that properly designed ePTFE vent solutions extend product reliability far beyond non-vented designs, reducing warranty claims and field failures in environments where conventional sealing methods fall short.
Selecting the Right ePTFE Solution for Your Application
Achieving reliable IP67/IP68/IP69K performance requires more than a generic membrane. It demands material expertise, precise pore-size control, long-term durability testing, and full traceability under international quality systems. Spider(Xiamen) Technology Co., Ltd has specialized in ePTFE membranes and high-performance protective breathable products since 2016—more than 10 years of focused experience. Our ISO9001- and IATF16949-certified processes, combined with an R&D team of master’s- and doctoral-level polymer specialists, ensure every vent meets or exceeds the exacting demands of electronics, automotive, new energy, outdoor equipment, and medical device sectors. We allocate 5 %–20 % of annual revenue to continuous innovation and provide comprehensive third-party reports (SGS, CE, UL, PFOA-Free, RoHS, REACH) for full transparency.
Our products are already trusted by over 1,000 enterprises across Europe, the United States, Germany, Korea, Japan, India, Russia, Turkey, and beyond. This reflects our core principle: integrity builds quality, innovation leads the future.
For technical consultation, custom ePTFE breathable valve solutions, or application-specific IP rating guidance, please contact us at weitaiyan@spider-amoy.com.
By SST R&D Engineering Team, Spider(Xiamen) Technology Co., Ltd.
